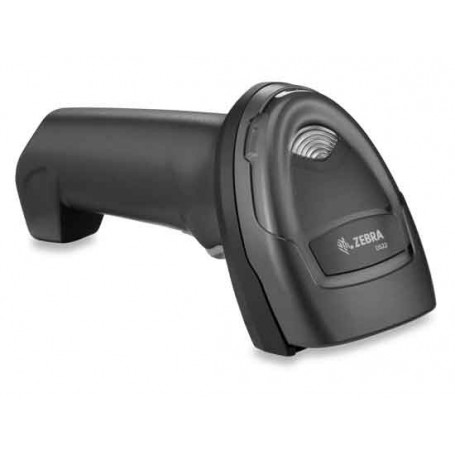

Handheld Zebra Reader DS2208
Zebra DS2208 is a scanner that supports both 1D barcodes and popular 2D codes, i.e. QR or DataMatrix. The imager type scanning module allows you to read codes also from screens, smartphones, tablets, etc. Easy to use and reliable reader, it allows quick scanning on a "point and scan" basis. The increased reading speed has been achieved thanks to the technology of omnidirectional code reading.
The ratio of excellent quality to low price makes it one of the most popular wired readers available on the market. It is used in a wide variety of environments: warehouses, retail, logistics, administration, healthcare, etc. The scanner withstands falls on a hard surface from a height of 1.5 meters, also has an IP42 protection standard and works in the temperature range from 0° to 50.0° C. The standard set includes a reader, USB cable and stand (you can optionally choose a configuration with another interface cable, e.g. RS232). The manufacturer's warranty for the DS2208 Zebra is 60 months.
- scans 1D and 2D codes
- 2D, imager
- reading range up to 36.8 cm
- resistance to falls from a height of 1.5 m
- USB interface
- elegant and ergonomic
Instant mode change
The DS2208 Zebra can be used as a handheld or stationary scanner using a stand. After placing the reader on the stand, it switches to automatic operation mode – you do not need to re-enter any settings.
Cable with auto-host detection
When you connect the reader to a point of sale (POS), the cable will automatically detect the type of interface connected and connect the device to the host. This will simplify the configuration process and reduce the time needed to set parameters.
- The devices of this series can be charged via a micro USB cable, which is an inexpensive alternative to a docking station.
Unmatched reading range
Barcodes can be scanned from different distances (1.23 cm to 36.8 cm). Thanks to this, we increase the speed of handling queues at the checkout and reduce the amount of time needed to train employees.
Simple aiming and scanning
Omnidirectional scanning eliminates the need to precisely position the imager relative to the barcode (necessary for 1D scanners).
The aim line helps you scan from the optimal distance from the barcode.
Technical Specifications ofZebra DS2208 2D Barcode Reader
|reading technology ||2D, imager |
|readable barcodes ||1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
2D: PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
|Min. code contrast ||25 % |
|movement tolerance ||13cm/sec |
|reading range ||up to 36.8 cm |
|reading signaling ||sound and light |
|scanner resolution ||camera 640x480 px |
|fall resistance ||1.5 m |
|Sealing ||IP42 |
|width ||66 mm |
|length ||99 mm |
|height ||175 mm |
|cable ||USB A (USB interface) |
|operating environment temperature ||0°C to 50 °C |
|humidity of the working environment ||from 5% to 95% |
|scales ||161.6 g |
|included ||reader, USB cable, stand |
|warranty ||36 months |
