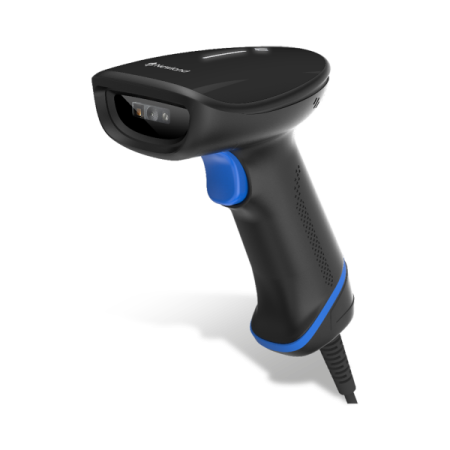

Newland HR23 Dorada Corded - Wired 2D Barcode Scanner

Professional Barcode Scanner for Everyday Use

The Newland HR23 Dorada Corded is a reliable wired barcode scanner designed for businesses looking for an efficient solution for identifying products, documents, and shipments. It is ideal for retail stores, warehouses, logistics centers, parcel collection points, and manufacturing facilities.

Thanks to its CMOS Area Imager technology, the scanner delivers fast and accurate reading of both 1D and 2D barcodes, ensuring high scanning performance in everyday operations.

Stable USB Connectivity

The HR23 Dorada Corded is equipped with a USB cable that provides a stable connection to a computer, POS terminal, or warehouse management system. Powered directly via USB, the scanner does not require batteries or rechargeable power sources.

Key benefits:

• Stable wired communication

• No battery charging required

• Ready to use at all times

• Quick Plug & Play installation

• Reliable all-day operation

Reading 1D and 2D Barcodes

The scanner supports the most commonly used barcode symbologies in retail, logistics, and industrial environments. It easily reads codes printed on labels, documents, and displayed on mobile device screens.

Supported 1D barcodes:

• EAN-8

• EAN-13

• UPC-A

• UPC-E

• Code 39

• Code 128

• Codabar

• Code 11

• Code 93

• Interleaved 2 of 5

• GS1 DataBar

Supported 2D barcodes:

• QR Code

• Data Matrix

• PDF417

• Micro QR

• Aztec Code

Durable Construction

The Newland HR23 Dorada Corded is designed for use in demanding working environments. Its IP52 protection rating helps protect against dust and water splashes, while its drop resistance of up to 1.5 m increases durability in warehouses and retail environments.

The ergonomic housing and lightweight design ensure comfortable operation, even during extended periods of use.

Key Features

• Reads both 1D and 2D barcodes

• CMOS Area Imager scanning technology

• Wired USB communication

• Reads barcodes from smartphone and tablet screens

• 640 x 480 px image sensor resolution

• LED and audible scan confirmation

• IP52 protection rating

• 1.5 m drop resistance

• Ergonomic design for intensive daily use

Technical Specifications

• Device type: Handheld barcode scanner

• Scan technology: CMOS Area Imager

• Sensor resolution: 640 x 480 px

• Communication interface: USB

• Minimum barcode resolution: 3 mil

• Scan confirmation: LED and buzzer

• Protection rating: IP52

• Drop resistance: 1.5 m

• Operating temperature: -10°C to +50°C

• Weight: approx. 137 g

Applications

• Retail stores and POS systems

• Warehouses

• Logistics centers

• Courier companies

• Manufacturing facilities

• E-commerce operations

• Parcel collection points

The Newland HR23 Dorada Corded is a proven solution for businesses that require fast barcode scanning, stable USB connectivity, and reliable performance in retail, warehouse, and logistics environments.

Package Contents

• Newland HR23 Dorada Corded barcode scanner

• USB cable
